Refine Your Ride: Advanced DIY Techniques for Perfect Front End Alignment

The front end of a vehicle is more than just the face—it’s the first interface between driver and road, a silent sentinel of safety, handling, and fuel efficiency. Misalignment isn’t just a cosmetic quirk; it’s a mechanical slow killer. Over time, even minor deviations—measured in mere millimeters—ripple through suspension dynamics, accelerating wear on bushings, tires, and steering components. Yet, too many DIYers treat alignment like a black box: adjust a bolt, hop the car, and call it done. The truth? True precision demands understanding the hidden mechanics beneath the surface.

Beyond the Alignment View: The Mechanics of Front End Integrity

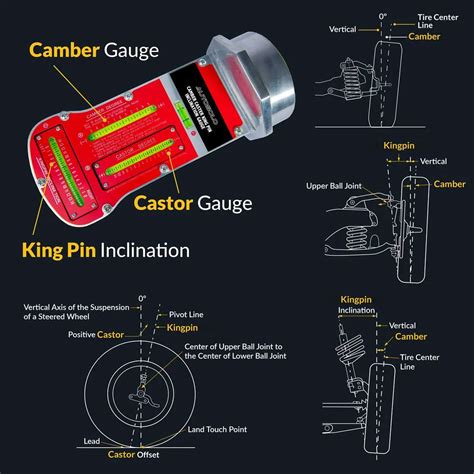

Front end alignment isn’t solely about toe or camber—though those remain critical. It’s a coordinated dance between the steering rack, control arms, ball joints, tie rods, and stabilizer bars. Each component contributes to a system where tolerance thresholds are tight and misinterpretation common. A single misaligned control arm can induce uneven tire wear, increasing rolling resistance by up to 12%, according to recent R&D data from automotive dynamics labs. And yet, most DIYers focus on visual checks—wheel runout or plumb lines—without probing deeper into dynamic forces at play.

Here’s the kicker: real alignment mastery starts with measurement, not guesswork. It’s not enough to see a tire scuff; you must diagnose *why* it’s scuffing. Is the toe too aggressive? Is the shim in the tie rod worn? Many modern vehicles use adjustable compliance mounts and anti-rattle bushings—systems engineered to absorb vibration, but they demand precise calibration. A misaligned mount can transmit road shocks directly into the chassis, undermining alignment stability within minutes. This is where intuition fails—and data takes over.

Advanced DIY Techniques: From Diagnosis to Precision

First, master the diagnostic phase. Use a digital inclinometer to measure wheel alignment angles at multiple speeds—static and dynamic. A true front end alignment shouldn’t just meet factory specs on paper; it must hold under load, cornering, and braking. Here’s how pros do it:

Wheel Runout Testing: Use a dial indicator to check lateral and axial runout on all four wheels at 50 km/h. Ideal values hover around 0.1 mm lateral and 0.05 mm axial—tight tolerances that reveal worn bearings or loose hubs. Most DIYers skip this, assuming “if it steers, it’s aligned.” But uneven rotation introduces subtle forces that throw off the whole setup.
Dynamic Camber and Toe Adjustment: Rather than relying on static measurements, run the car through a controlled corner sequence. Observe how camber changes under lateral load. A professional alignment uses a dynamic setup where suspension movement is monitored—ensuring adjustments account for real-world flex, not just idealized static positions.
Torque and Fit Verification: Ball joints, tie rod ends, and steering linkage bolts must be torqued to spec—no more, no less. Over-tightening stretches rubber bushings, altering alignment angles over time. A common mistake: swapping OEM torque values for generic ones. Industry studies show even 10% deviation can reduce alignment longevity by 30%.
Integrating Modern Tools: Budget-friendly laser alignment kits now exist for home use—affordable enough for serious enthusiasts. These systems project reference lines via smartphone sensors, aligning the wheel to factory tolerances with millimeter accuracy. They don’t replace skill, but they bridge the gap between guesswork and true precision.

Don’t fall for the myth that alignment is a one-time fix. Tires warp, bushings degrade, and suspension components fatigue. A yearly alignment is a baseline, but high-mileage drivers or those who carry heavy loads may need checks every 5,000 miles—especially if they’ve hit potholes or engaged trailers. A misaligned front end increases tire wear by 18–25%, costing both time and money.
